ND8110HFU-4K30

 Click on the picture to enter the Gallery
Feature

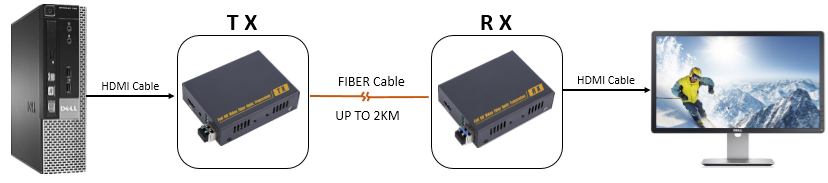

Transmits HDMI video signals up to 2km-10km over a pair fiber optic cable;
Support video resolution up to 3860*2160@30Hz, 3D signal;
Support copy EDID copy/pass-thru, can match many kind display device;
Compliance with HMDI 1.4 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play

Port name Description
HDMI IN/OUT HDMI signal input/output
EDID EDID Copy button, Press 3 seconds, copy EDID from HDMI IN display device to system .If HDMI IN interface no display connect, restore default EDID.
DC/5V Power adapter socket
FIBER SFP model --- LC connector
LED indicator Description
L Optical fiber signal connection indicator
S Video signal connection indicator
P System power indicator


















Parameter Description
Video Standards HDMI 1.4
Maximum pixel clock 225MHz
Maximum data rate 6.75Gbps
Resolution range Up to 3840*2160@30Hz
Connector Female HDMI type A
Impedance 100Ω
Optical fiber Interface SFP model – LC connector
Fiber type Single-mode
Wavelength Single-mode 1310nm
Interface bandwidth 10Gbps
Transmission distance Single-mode fiber: standard 2km;
Other Power supply The power adapter: DC 5V/2A
Power dissipation MAX 5W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension 94.5*73*26mm
The warranty 1 year free warranty

HDMI Fiber Optic Extender(unpacked) 1*HDMI+1*10G Single FiberVideo and audioSFP slot (choose 2km-10km modulesurport 3Dup to 3840*2160@30HzHDMI1.4 DC5V2A
